Baofeng 5RM Walkie Talkie UV-5RM Six-Band AM /FM VHF/UHF Ham Radio 999CH NOAA Wireless Copy Frequency Long Range Two Way Radios
Baofeng 5RM Walkie Talkie UV-5RM Six-Band AM /FM VHF/UHF Ham Radio 999CH NOAA Wireless Copy Frequency Long Range Two Way Radios
SPECIFICATIONS
Brand Name: BAOFENG
Origin: Mainland China
Waterproof / Water-Resistant: No
Maximum Range: 3km-5km
Model Number: 5RM
Is_Display: Yes
Walkie Talkie Type: Portable
Hign-concerned Chemical: None
Battery Capacity(mAh): High Capacity
Material: Plastic
Storage Channel: 999
Frequency Range: 65-108MHZ/108-136MHZ/136-174MHz/220-260MHz/400-520MH/350-390MHZ
Dimensions: 122mm*60mm*39.5mm
Output Power(w): 10w-25w
Certification: CE
Certification: DOT
Certification: EAC
Certification: EPA
Certification: FCC
Certification: GMP
Certification: RoHS
Certification: TGA
Certification: UL
Certification: KC
Certification: pse
Certification: weee
Type: AM / FM Radio
VHF(Max) Power: 14.5W
UHF (Max) Power: 10W
Battery: Li-ion Battery
Charger: USB Type-C Charging OR Desktop
Frequency: Six-Band
FM: FM:65-108MHZ(RX)

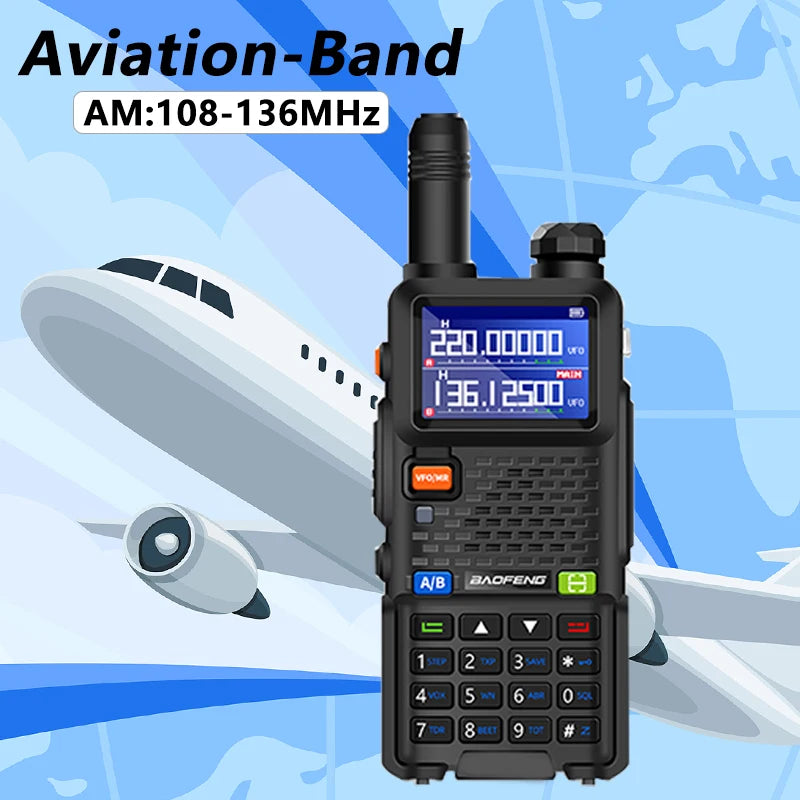

AM: AM:108-136MHZ(RX)
VHF: VHF:136-174MHZ(RX&TX)
VHF: VHF:220-240MHZ(RX)
UHF: UHF:400-480MHZ(TX&RX) 480-520MHZ(RX)
Police: Police:350-390MHZ(RX)

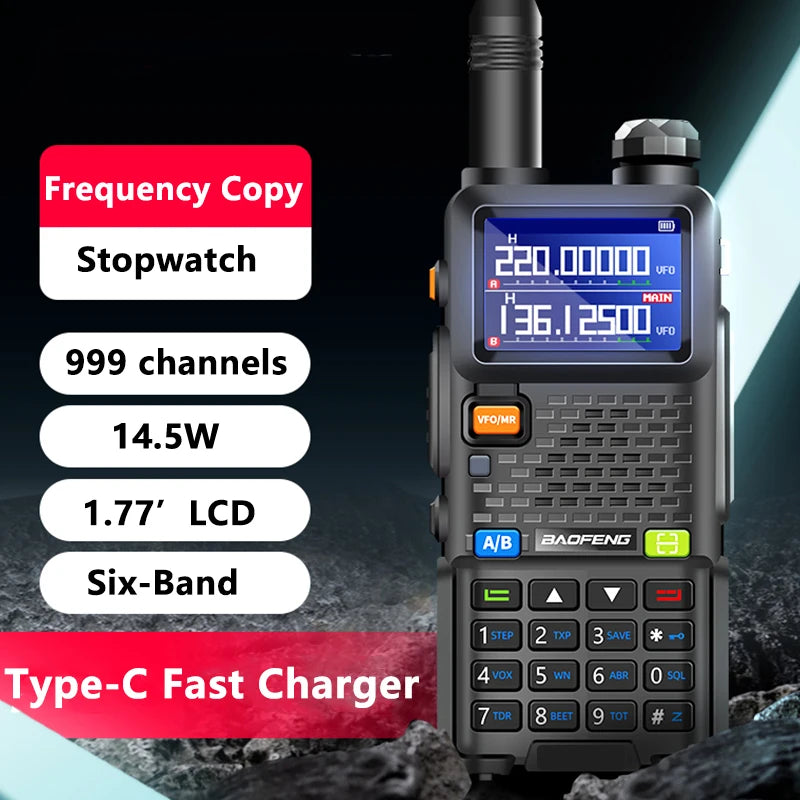

Features 1: 1.77' large screen
Features 2: Tri-band Transmit,Six-band Receiving

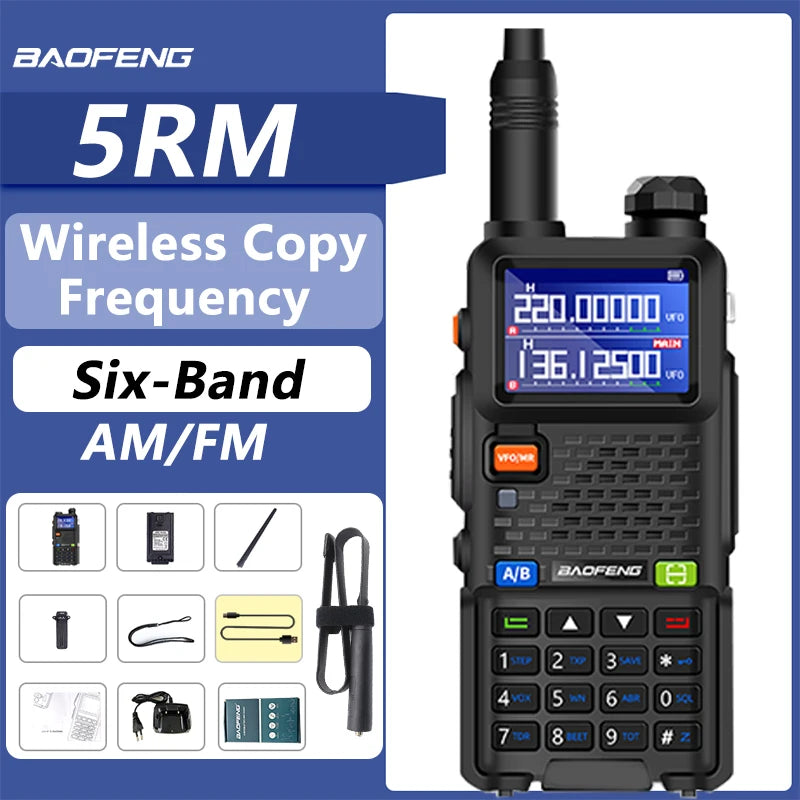

Features 3: Wireless frequency copy
Features 4: NOAA Weather Channel
SUPER POWER 14.5 Watts Max.
Baofeng UV-5RM 5RM AM/ FM Walkie Talkie
USB Type-C or Desktop Charging / Long-lasting Battery
FM:65-108MHZ(RX) / AM:108-136MHZ(RX)\
Police:350-390MHZ(RX)
VHF:136-174MHZ(RX&TX) /Â VHF:220-240MHZ(RX) \
 UHF:400-480MHZ(RX&TX) / 480-520MHZ(TX)Â
Remarks:
1.77" Color Screen
999 Memory Channels
14.5W Power Max
Six-band(Three bands Transmits and 6 band receive)
FM:65-108MHZ(RX)
*AM:108-136MHZ(RX)
VHF:136-174MHZ(RX&TX)
1.25M:220-240MHZ(RX)
UHF:400-480MHz(TX&RX) / UHF:480MHz-520MHz(RX)
*Police:350-390MHZ(RX)
10 Groups NOAA Weather Forecast Channels
Wireless Frequency copy
65-108MHz FM Radio Receiving
Flashlight
Stop-watch Timer
1000Hz/1450Hz/1750Hz/2100Hz Tone
Keypad Lock
Time,Carrier and Search Scan Modes
Frequency,Channel Scan
CTCSS,DCS Scan
VOX
Dual Watch
DTMF
Frequency (FREQ),Channel (CH) and Channel name(Name) working mode
Roger Beep (End Transmission Tone)
Power On password
Voice Encryption
3800Mah Rechargeable Li-ion Battery Pack

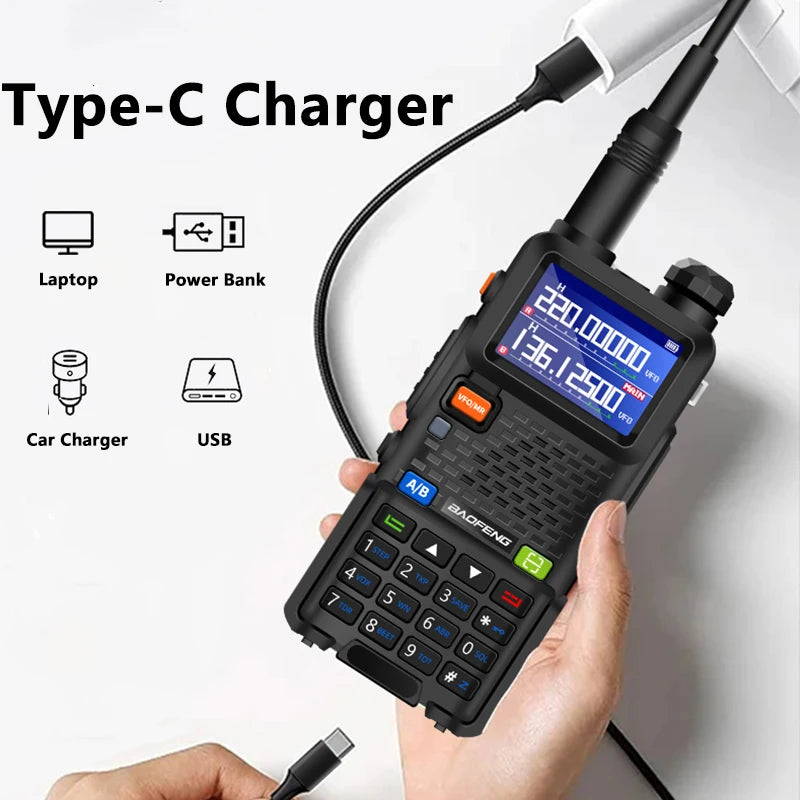

Battery Type-C Fast Charging Jack
Scrambler
General
Channel Capacity:999
Channel Spacing:25.0KHz/12.5KHz
Input Voltage:7.4VDC
Current Drain: Standby:45mA
Receive:380mA
Transmit:≤1.6A(High power),≤1.4A (Medium power) ≤1.2A (Low power)
Operating Temperature:-10°cto 60°c
Antenna Impedance:50 ohm
Radio Dimensions:122mm*60mm*39.5mm(Antenna Not included)
Radio weight:260g (with Li-ON battery)
Transmitter
Modulation:16K ΦF3E/11K ΦF3E
Spurious Emission:-16dBm< 1GHz, -16dBm> 1GHz
Frequency Range (TX):136-174MHz&400-480MHz
Frequency Stability:±2.5ppm
Audio Distortion:≤5%
FM Hum & Noise:40dB
Receiver
Frequency Range:
FM:65-108MHz / AM:108-136MHz / VHF1: 136-174MHz / VHF2 :220-240MHz / Police Band:350-390MHz / UHF:400-520MHz
Sensitivity:12dB SINAD: -120dBM
Adjacent Channel Selectivity:-60dBm
Intermodulation and rejection:-70dBm
Rated Audio Distortion:≤5%
Note: All Specifications may be modified without prior notice or liability. Thank you!

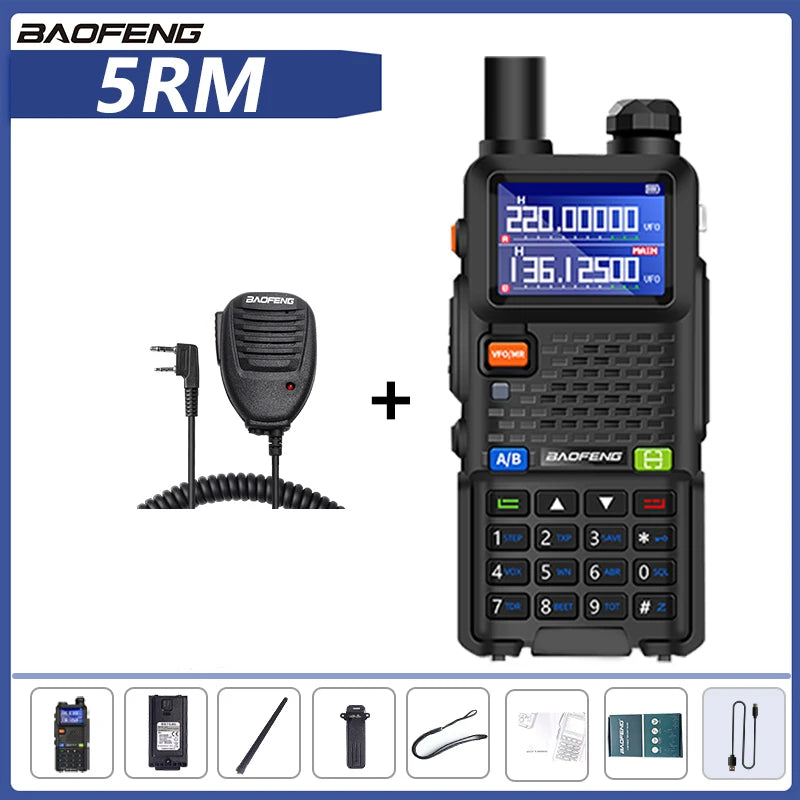

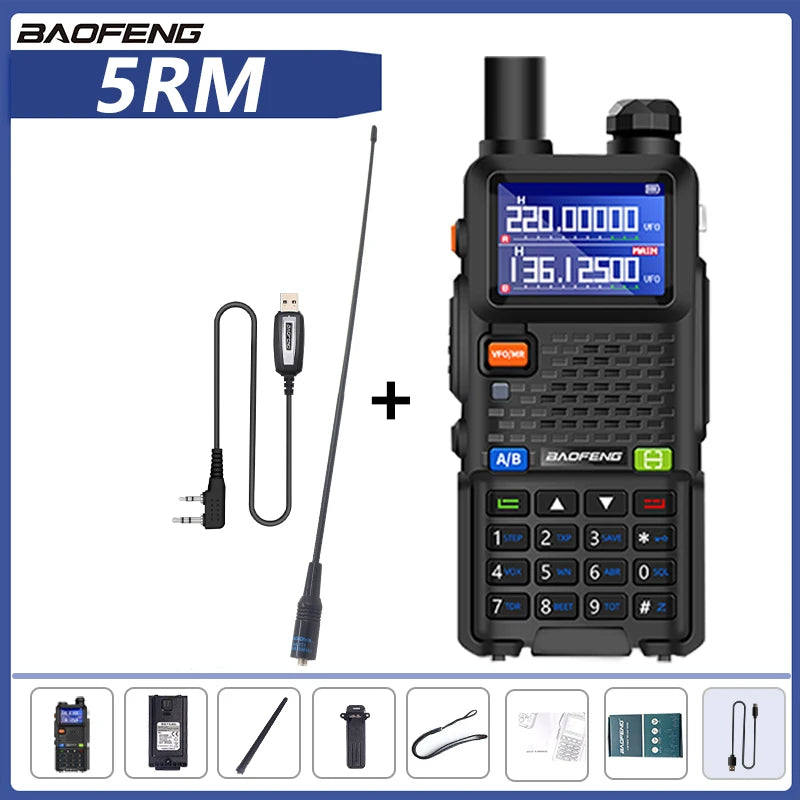

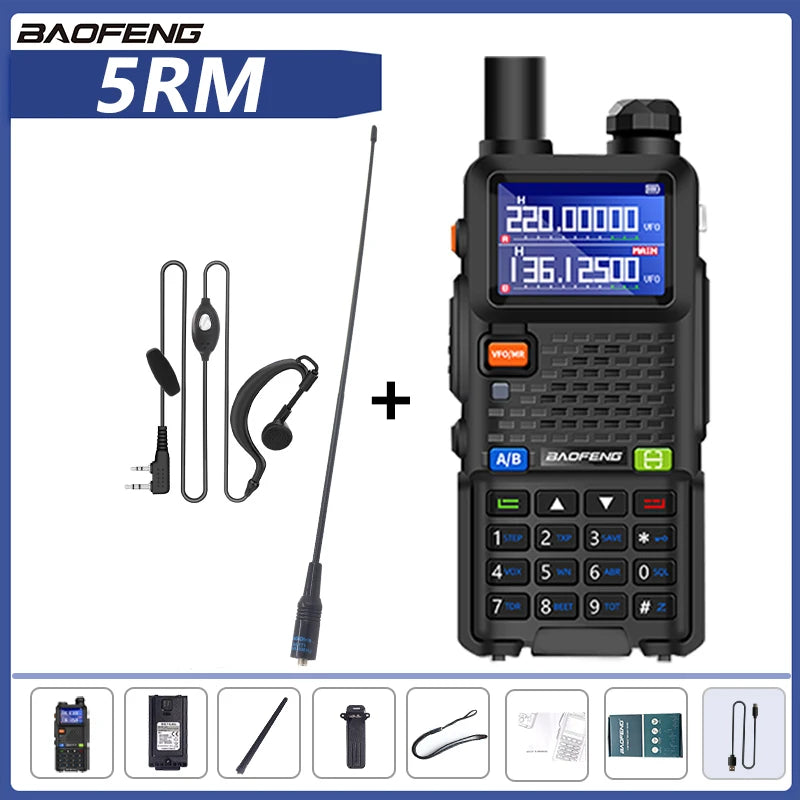

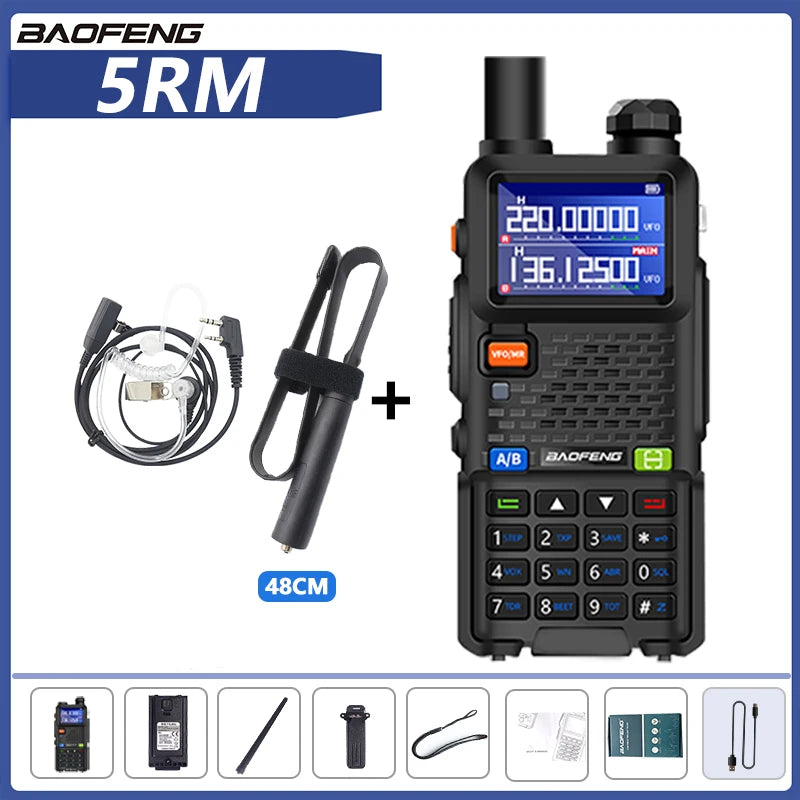

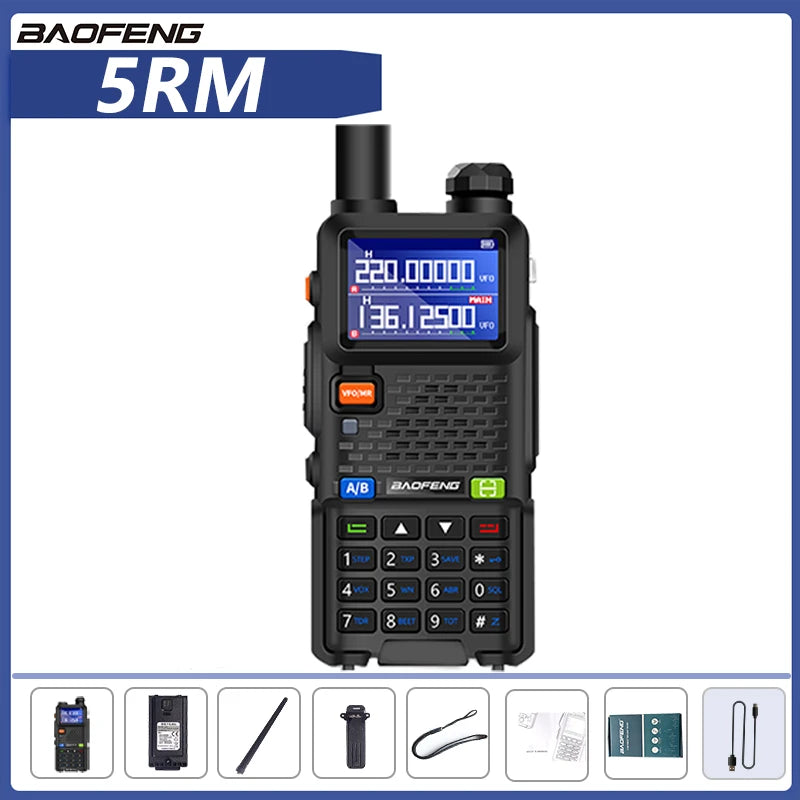

Package Included:
1× Radio
1× 7.4V Li-ion Battery
1× SMA-Female Dual Band Antenna
1× Charger base(+Type-C as gift)
1× Belt Clip
1× Handstrap
1× ENG Manual
1× Box
Note:We will send you the item of your choice. (Please check your selected sku carefully before placing your order)
