2PCS BAOFENG UV-5R Walkie Talkie Dual Band VHF UHF Two Way Radio Long Range 128CH VOX Handheld Transceiver UV5R UV 5R Ham Radio
2PCS BAOFENG UV-5R Walkie Talkie Dual Band VHF UHF Two Way Radio Long Range 128CH VOX Handheld Transceiver UV5R UV 5R Ham Radio
SPECIFICATIONS
Brand Name: BAOFENG
Origin: Mainland China
Waterproof / Water-Resistant: No

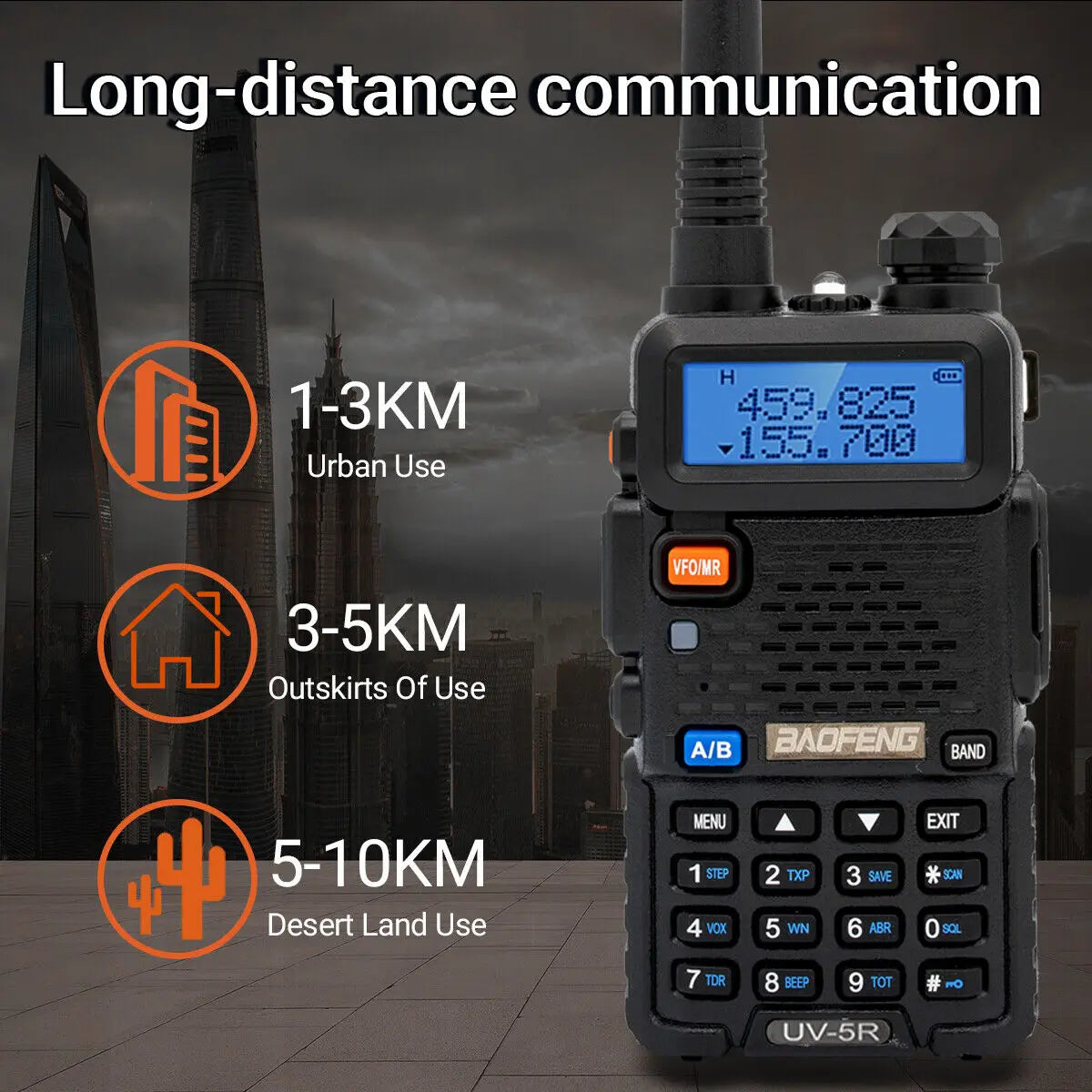

Maximum Range: 3km-5km
Model Number: UV-5R
Is_Display: Yes
Walkie Talkie Type: Portable
Hign-concerned Chemical: None
Battery Capacity(mAh): 1800
Material: Plastic
Storage Channel: 128
Frequency Range: 136-174/400-520mhz
Output Power(w): 3w-5w

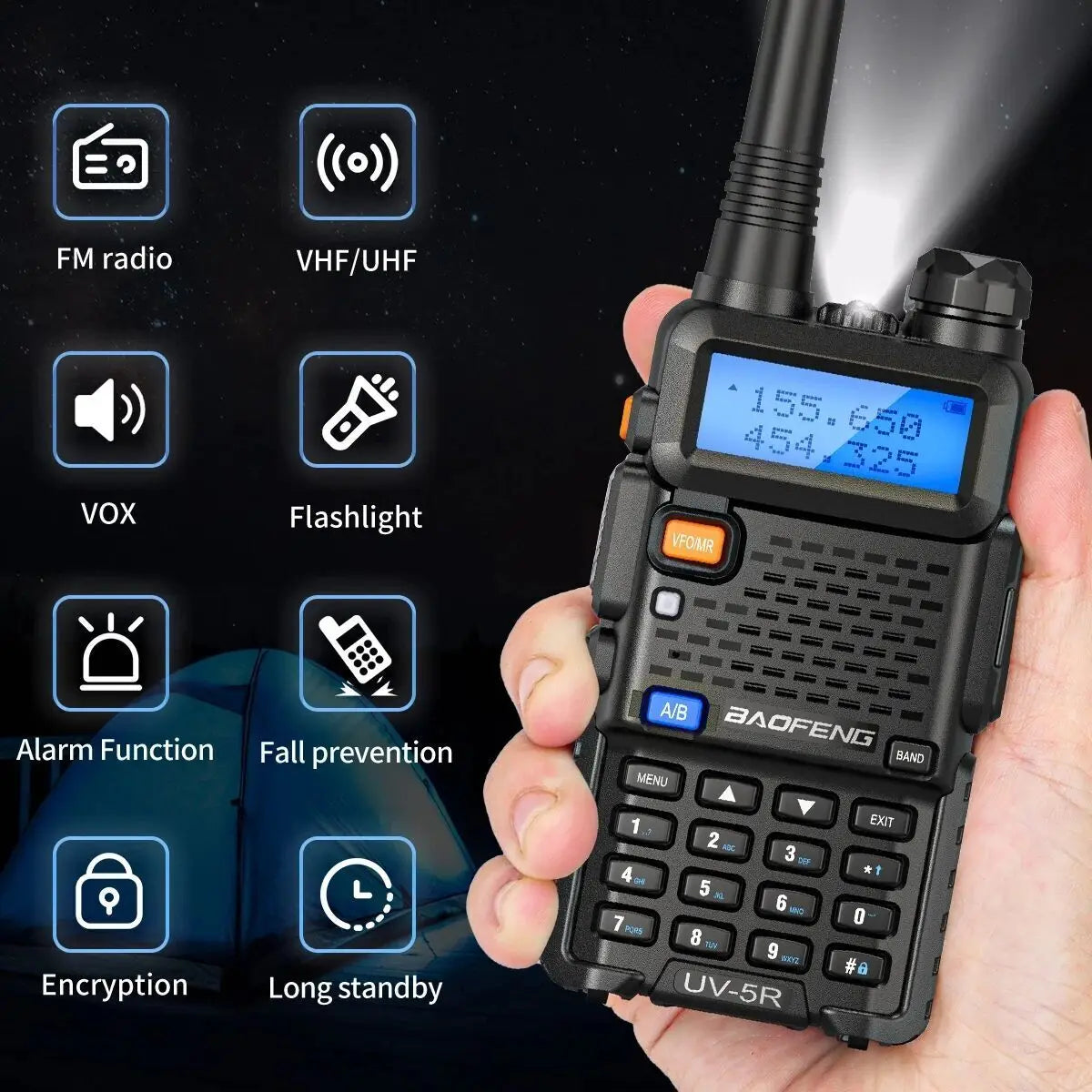

【Features】High/Low TX power selectable,With 128 Channels,50 CTCSS and 104 CDCSS,LED Flashlight,Function VFO & Memory channels scan,Dual display / Dual standby/ Auto Keypad Lock, Support CHIRP quick programming,easy to program via PC.
【FCC Certificate】FCC Part 15 Part 97 Certified，FFC ID: 2AJGM-UV5R
【Widely Application，Easy To Carry】The Radio is necessary for traveling, survival, hiking, cycling, work, camping, fishing, Emergency Alarm. It is Walkie talkie lover's favorite.
Functions:
Dual display / dual standby
A/B band independent operation(UV UU VV)
128 groups channels storage
Shortcut menu operation mode
VFO & Memory channels scan
Emergency Alarm
Time-out Timer (TOT)
0~9 grades VOX selectable
PTT & ANI ID
Voice companding
High/Low TX power selectable
Busy channel lock-out(BCLO)
DTMF function
OFF SET function
Specifications:
Rated Voltage:7.4V DC±10%
Battery capacity:1800mAh
Working temperature:-20~+50°C
Antenna Impedance:50ohm
Dimension(LXWXH):140x58x32mm(Not Antenna)
PRECAUTIONS
1. Refer service to qualified technicians only.
2. Do not disassemble or modify the transceiver for any reason.
3. Do not expose the transceiver under direct sunlight long time or to extremely hot condition.
4. Do not place the transceiver on the unstable surface.
5. Keep the transceiver out of dust, moisture, and water，fire.
6. Do not operate the transceiver or charge the battery pack under explosive conditions.

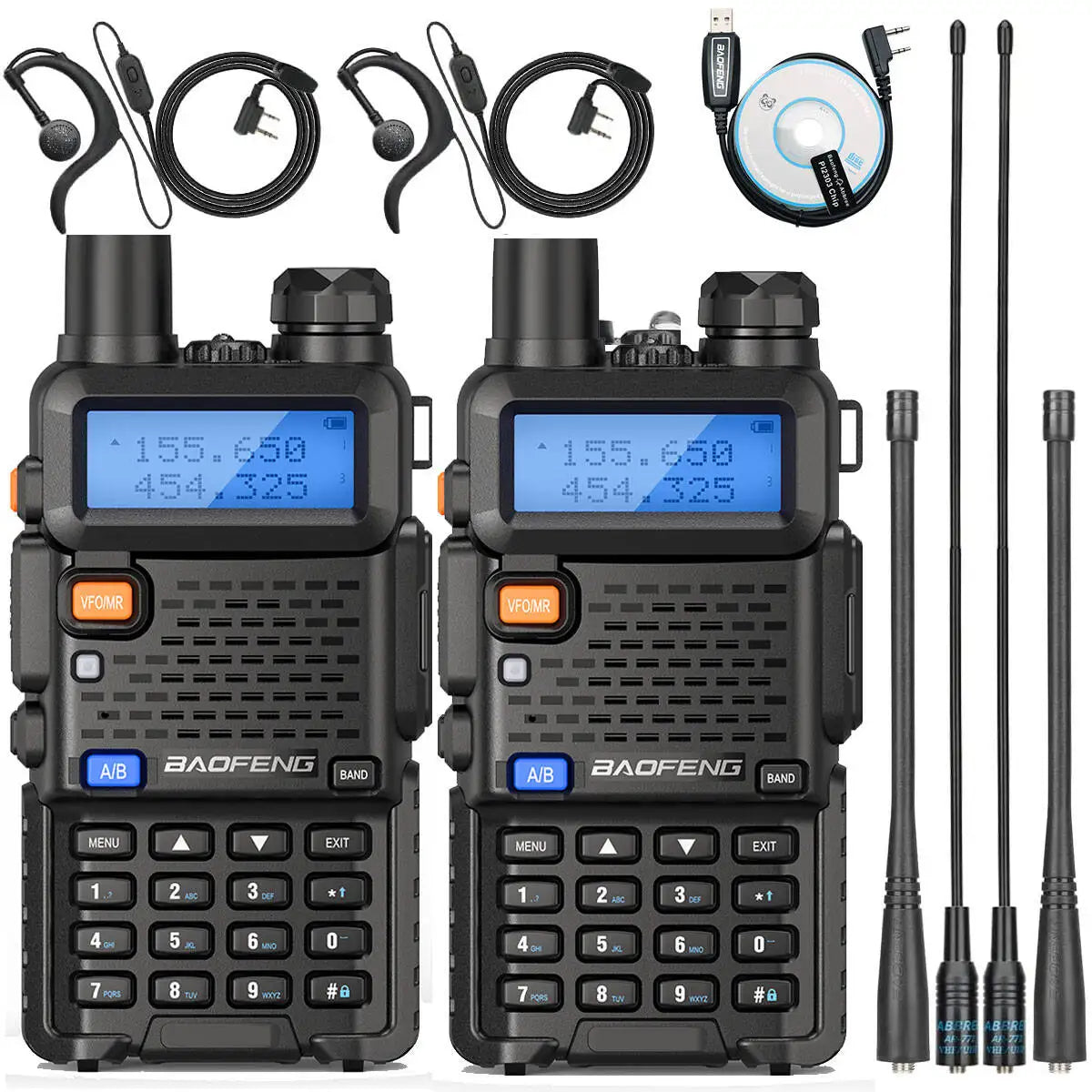

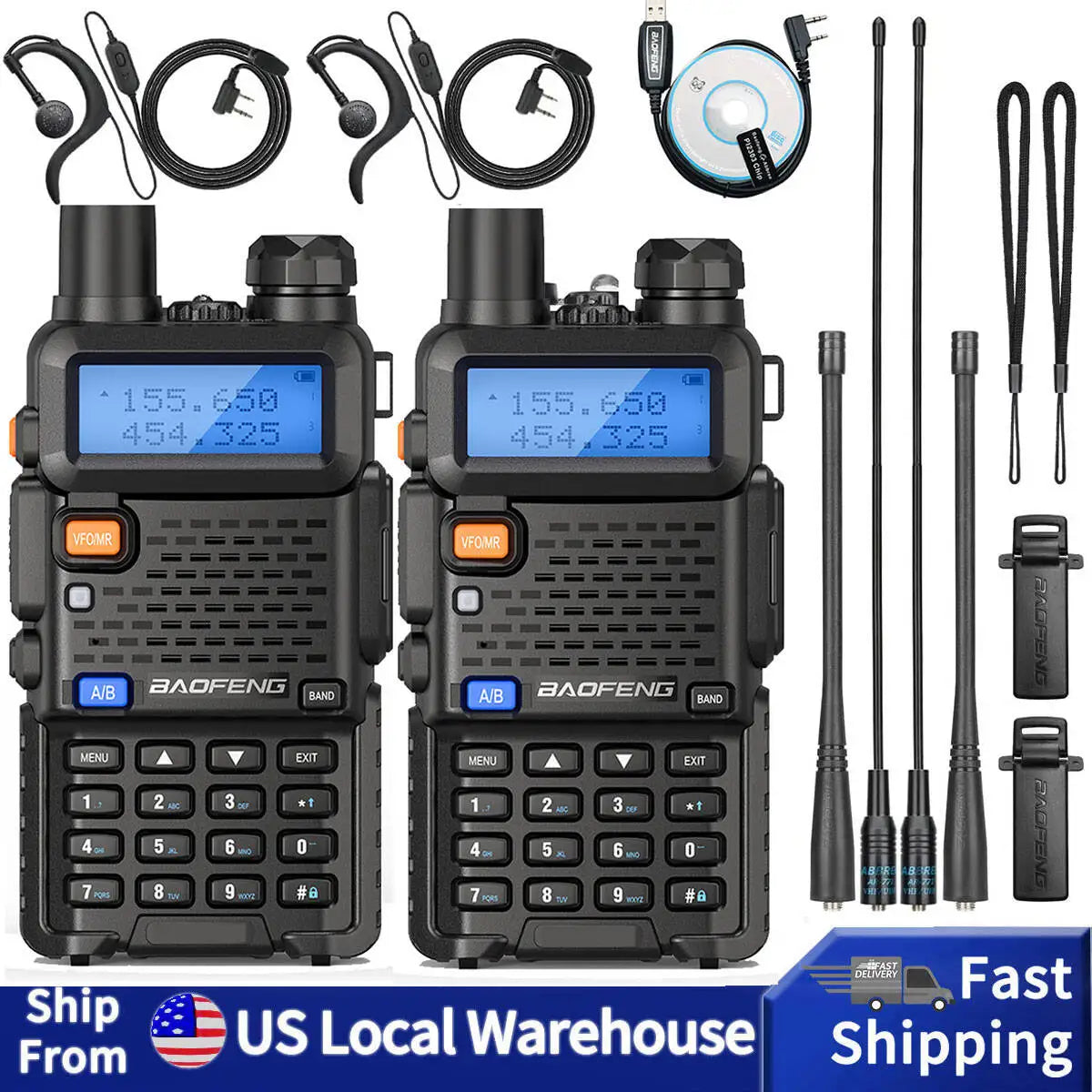

Package Include:
2 X Portable radio
2 X Original Antenna
2 X 1800mAh battery
2 X Belt clip
2 X The sling
2 X Earpiece
2 X Charger
2 X USB charger cable
1/2X User's manual
